Lab-06a-Noise of A Cascased System

Use http://www.rfdh.com/rfdb/nf.htm

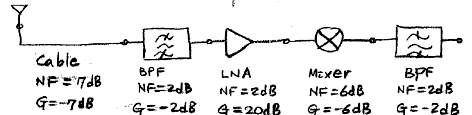

1. Find the system noise figure and the noise temperature of the following receiver. This receiver has a large noise figure because a long cable with loss of 6 dB connects an antenna to a preselector filter.

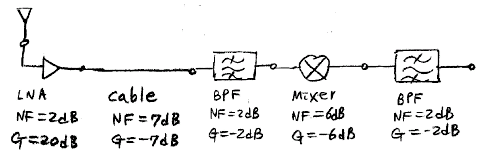

2. Find the system noise figure and the noise temperature of the following receiver where we have placed an LNA as the first element after the antenna. As a result, this receiver has a much smaller noise figure than the previous receiver.
